Description

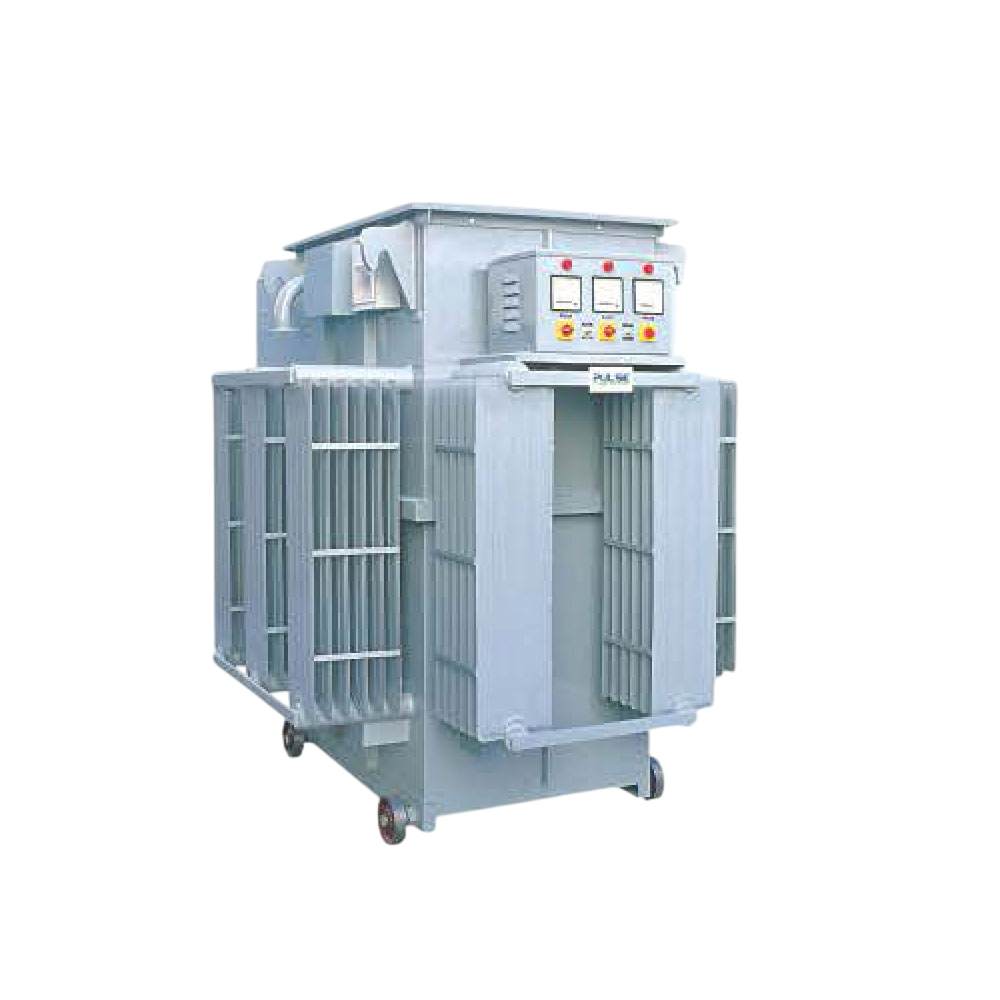

Pulse Group Stabilizer is commonly observed that, AC main supply is never 230 Volt or 415 Volt, but varies from 150 Volt-300 volt and 300 Volt-500 Volt. The difficulties caused by them are well known, such as Over load condition, Line Losses, Poor Power Factor and several other reasons. Generally constant voltage which is required to load is never constant, but in fluctuation manner. It is observed that during the daytime, the voltage is quiet low and during the night the Voltage is high then the normal.
This fluctuation in supply system results frequent breakdown, low production and also loss of energy. The performance of any electrical equipment is optimum at its rated voltage. Both over / under voltages are harmful for the system. The under voltage reduces efficiency whereas the over voltage shortens the life.
The power agencies insist the consumer to fix the capacitor to improve power factor to get better results in power saving. But Voltages is far more important factor to save the power loss.
In case of very Low / High voltages the telecom systems are powered by DG sets. Our Line Conditioner Unit meets the requirement of input voltage variation from 110v-280v (Single Phase and
300V-500V (Three Phase).
Pulse Group Stabilizer is commonly observed that, AC main supply is never 230 Volt or 415 Volt, but varies from 150 Volt-300 volt and 300 Volt-500 Volt. The difficulties caused by them are well known, such as Over load condition, Line Losses, Poor Power Factor and several other reasons. Generally constant voltage which is required to load is never constant, but in fluctuation manner. It is observed that during the daytime, the voltage is quiet low and during the night the Voltage is high then the normal.
This fluctuation in supply system results frequent breakdown, low production and also loss of energy. The performance of any electrical equipment is optimum at its rated voltage. Both over / under voltages are harmful for the system. The under voltage reduces efficiency whereas the over voltage shortens the life.
The power agencies insist the consumer to fix the capacitor to improve power factor to get better results in power saving. But Voltages is far more important factor to save the power loss.
In case of very Low / High voltages the telecom systems are powered by DG sets. Our Line Conditioner Unit meets the requirement of input voltage variation from 110v-280v (Single Phase and
300V-500V (Three Phase).
| Input Voltage | 360-450V | 350-460V | 340-460V | 340-480V | 320-48OV | 300-500V |
|---|---|---|---|---|---|---|
| Efficiency (as per calculation) | 99.5% | 99.3% | 99.10% | 99% | 98.7% | 98.10% |
| Output Voltage | 380/400/415 ±1%, 3 Phase, 50 Hz | |||||
| Output Voltage Adjustment | +5% | |||||
| Output Voltage Regulation | + 1% (at no load/full load) | |||||
| Correction Rate | 10V -15V/ Second (or as per requirement) | |||||
| Temperature Rise (Mах.) | 35° C-40° C above ambient | |||||
| Cooling | Naturally Oil Cooled / Air Cool | |||||
| Insulation | Class ‘A’ | |||||
| Type | Indoor | |||||
| Mode of System | Fully Automatic/ Semi Automatic / Manual | |||||
| Mounting | On Uni-directional Wheel | |||||
| Waveform distortion | Nil | |||||
| Duty Cycle | 100% Continuous | |||||
| Voltage Controller | Micro Controller Based | |||||
| Protections | Neutral failure protection. Single phase prevention and cut off protection. Over/under voltage protection. With time delay for output. |
|||||
ADVANTAGES:
- Reduction in Breakdown of Electrical Equipment’s
- Improvement in power Factor (Only in case of High Voltage)
- Power Saving (Reduction in Power Bills)
- Depreciation as per Income Tax Act. In India
- Better Efficiency in Plant.
